The GARDN Cabin was developed as an urban or garden workspace and retreat. Crafted in our workshops in East Lothian, It can be delivered anywhere in the UK as a complete modular unit or as a kit of parts that are assembled on site. The GARDN is completely sustainable using only natural materials and finishes as well as being fully customisable to suit your requirements and design tastes.



cabin_timber_sustainable_floor
work_from_home_studio_cabin
designer_timber_furniture_style


cabin_garden_plan_cad

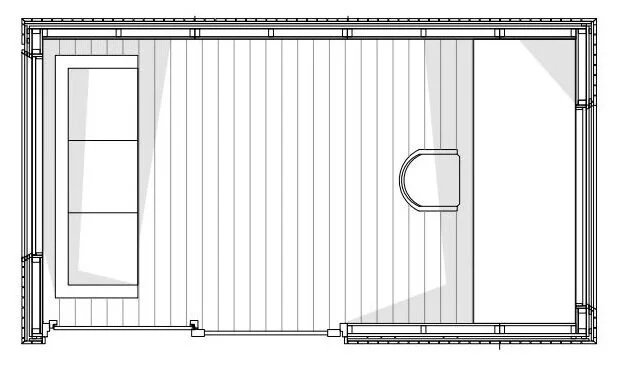

layout

External Dimensions, 4500 x 2500mm

Internal Dimensions, 4200 x 2200mm

External height, 2300 - 3000mm

Timber Alu Clad Sliding door, 2100mm x 2400mm

Fixed glazed window

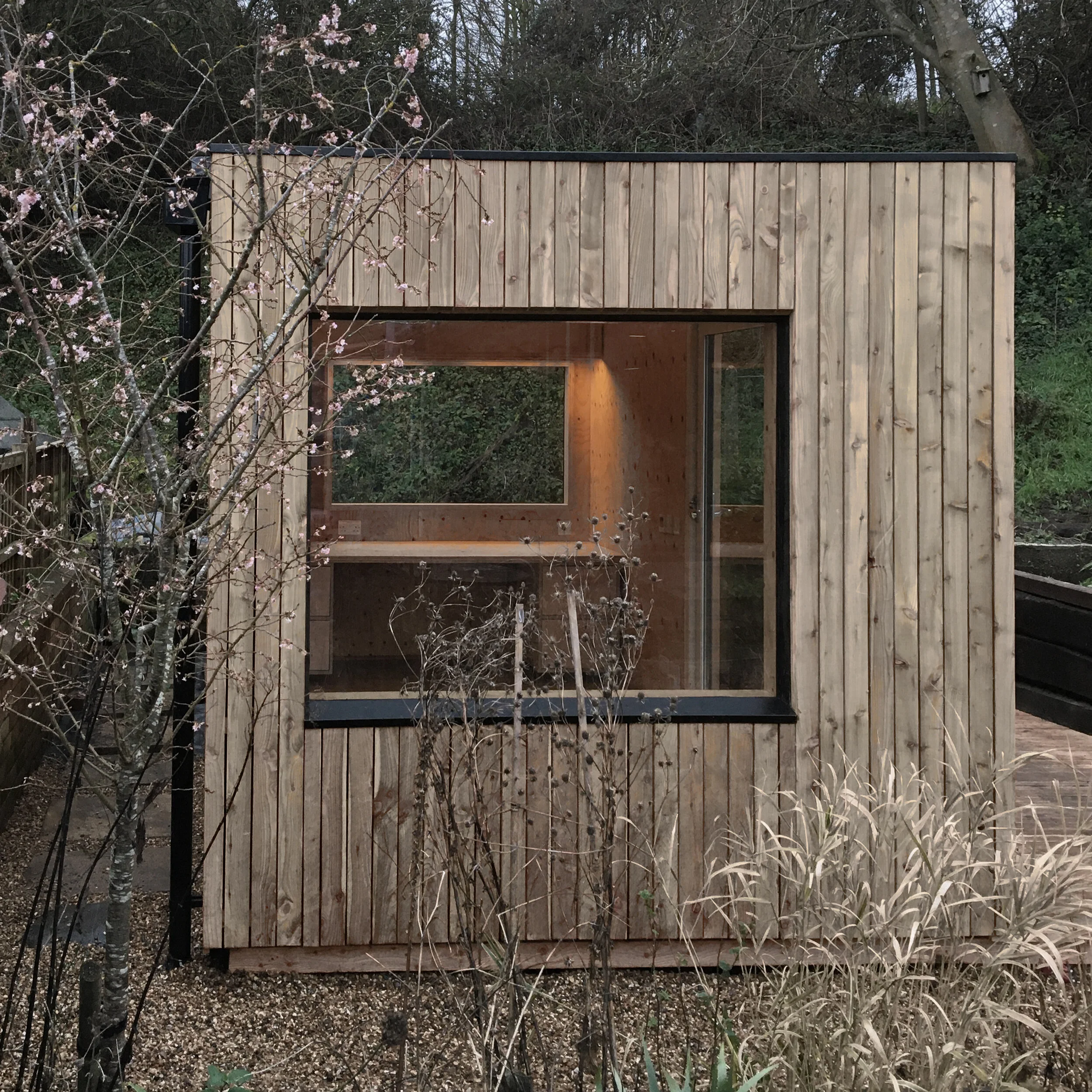

Scottish Larch Vertical Cladding

Black Corrugated Metal Roofing

**Lightweight closed timber panels made from spruce plywood. (Flatpack/modular prefabricated systems also available). Black or galvanised corrugated sheet roofing with EPDM membrane. 100mm of natural wood fibre insulation.



cabin_cladding_timber_sustainable
cabin_roofing_option_iron_steel_black
polished_brass_electric_switch



ALL OUR FINISHES ARE NATURAL, SUSTAINABLE, DURABLE AND EASY TO MAINTAIN. OUR CABINS ARE METICULOUSLY DESIGNED FOR MINIMAL LIVING. FURNITURE THAT IS DESIGNED TO FUNCTION AND COMPLEMENT THE SPACE IS IMPORTANT TO THE FINAL FEEL OF YOUR CABIN.

*Optional extras are available to add to the standard specification. Bothanna designs and makes bespoke furniture, storage, lighting, fixtures and stove installation.




gardn_stove_wood_plywood_build


FINISHES & FIXTURES

External finish, Home-grown European Larch Vertical or Horizontal Cladding. A contemporary rain screen profile comes as standard.

Internal finish, 18mm Spruce Plywood With Osmo Finish.

Floor finish, 18mm Spruce Plywood With Osmo Finish.

Electrics, The GARDN comes fully wired with lighting and 2 double socket points. Additional sockets can be requested if required. A Garage consumer unit is installed.

INTERIOR ADDITIONS

Stove Installation, We can install any brand of stove and can recommend several brands and models to suit the size of space. All our stoves are installed by HETAS certified installers.

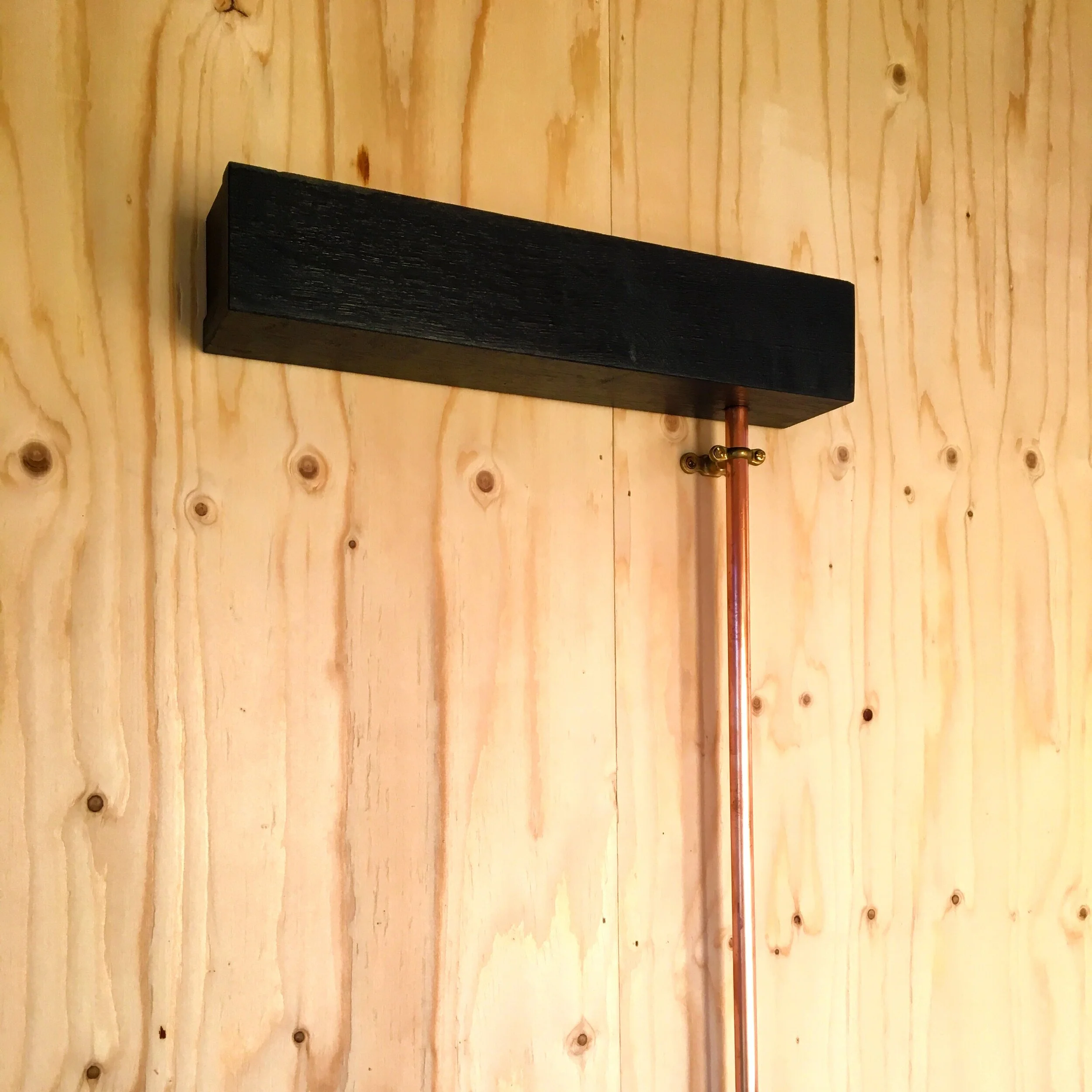

Lighting, We work with wood and copper to make bespoke lighting for your cabin. This will enhance the atmosphere and mood of the space.

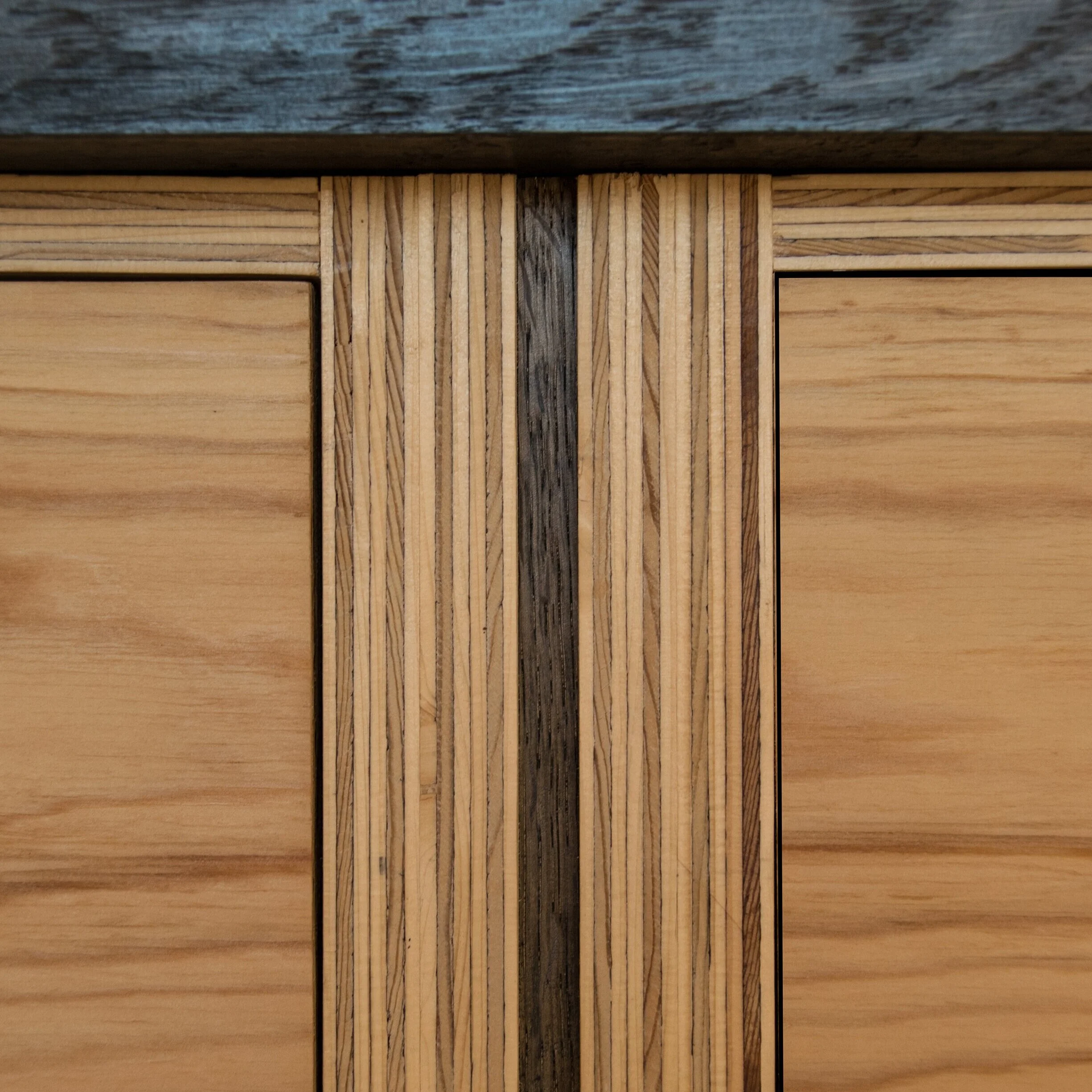

Furniture, We design functional and beautiful bespoke furniture from Scottish Hardwoods and Baltic birch plywood.

Under-floor heating The GARDN can be installed with underfloor heating and will require additional flooring covering.




wood_burner_stove_plywood_cabin
cabin_lighting_bespoke_copper
bespoke_cabinet_maker_scotland



THE GARDN IS A VERY FLEXIBLE DESIGN AND CAN UTILISE A NUMBER OF ROOFING MATERIALS TO SUIT YOUR TASTES. ALL THE OPTIONS HAVE BEEN CHOSEN FOR THERE ETHICAL AND SUSTAINABLE CREDENTIALS.



ISO 8- Roofing Timber.png
sedum_roofing_scotland_sustainable_eco



*Above: Timber Clad Roofing. Below: Sedum Roofing.

EXTERIOR OPTIONS

Sedum, Sedum roofs are a great way to add biodiversity to an urban garden or allow a building to settle into a landscape. They also have the benefit of stabilising internal temperatures, minimising summer overheating and winter cooling.

Timber Cladding, Cladding the roof with the same material as the walls creates a unified and contemporary look to the GARDN cabin.
